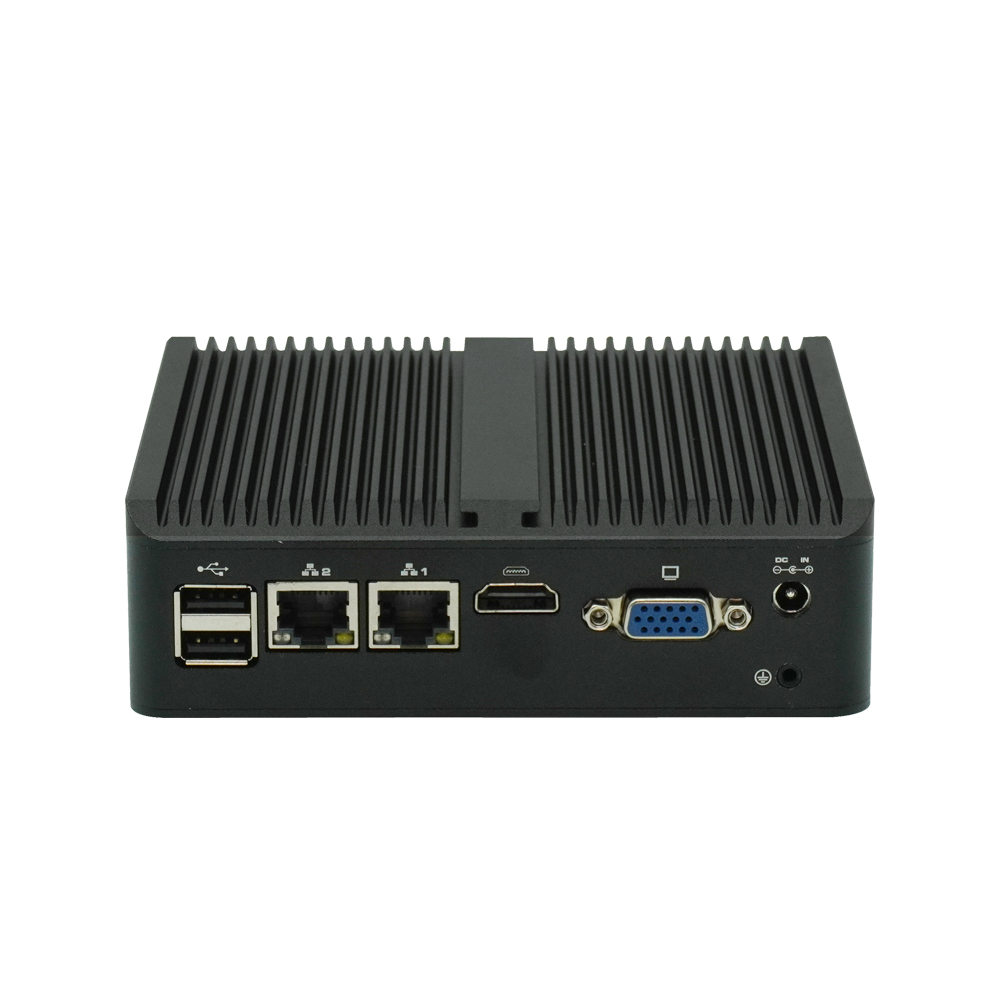

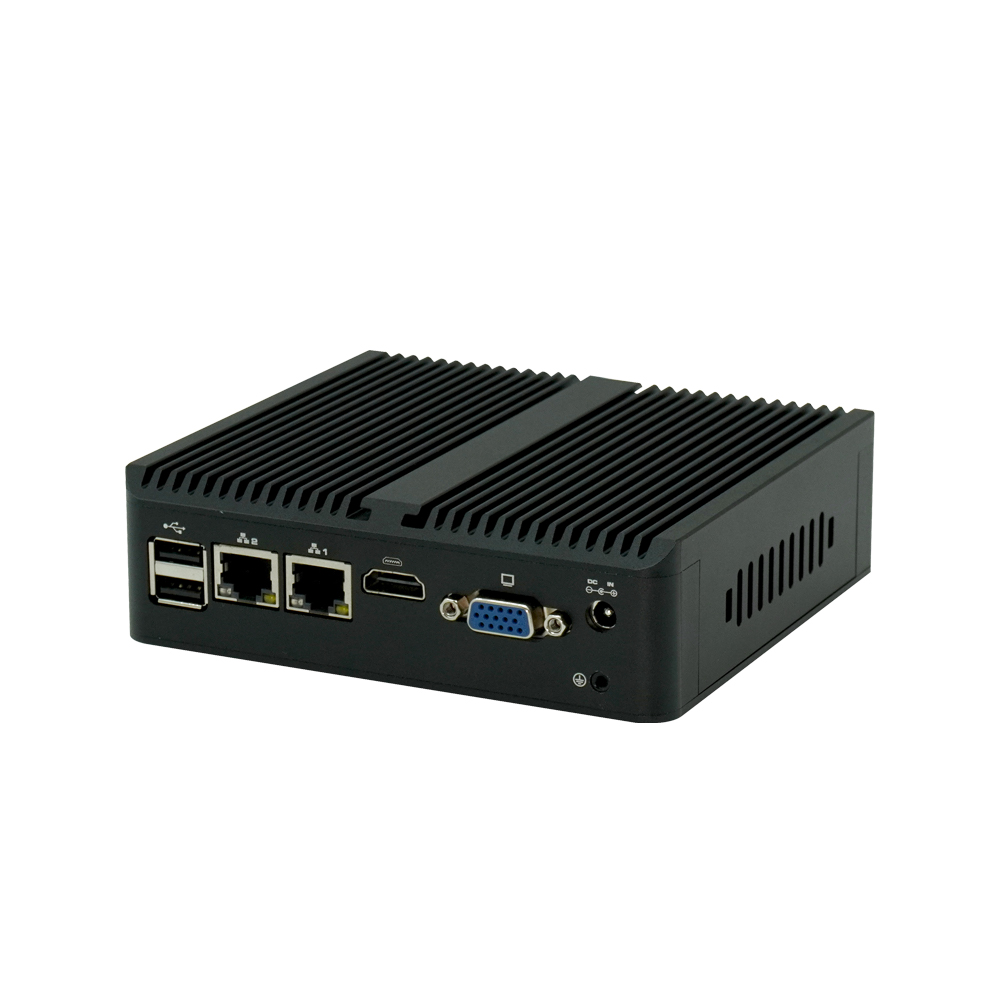

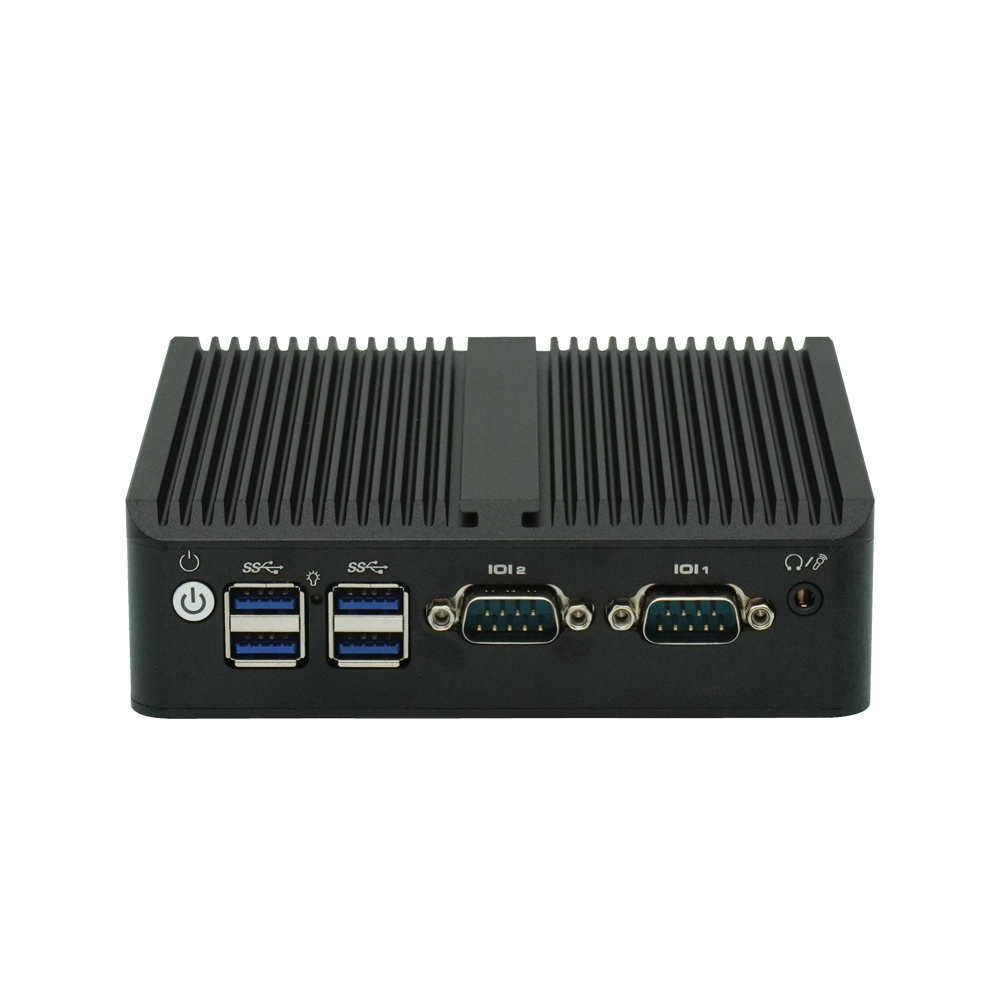

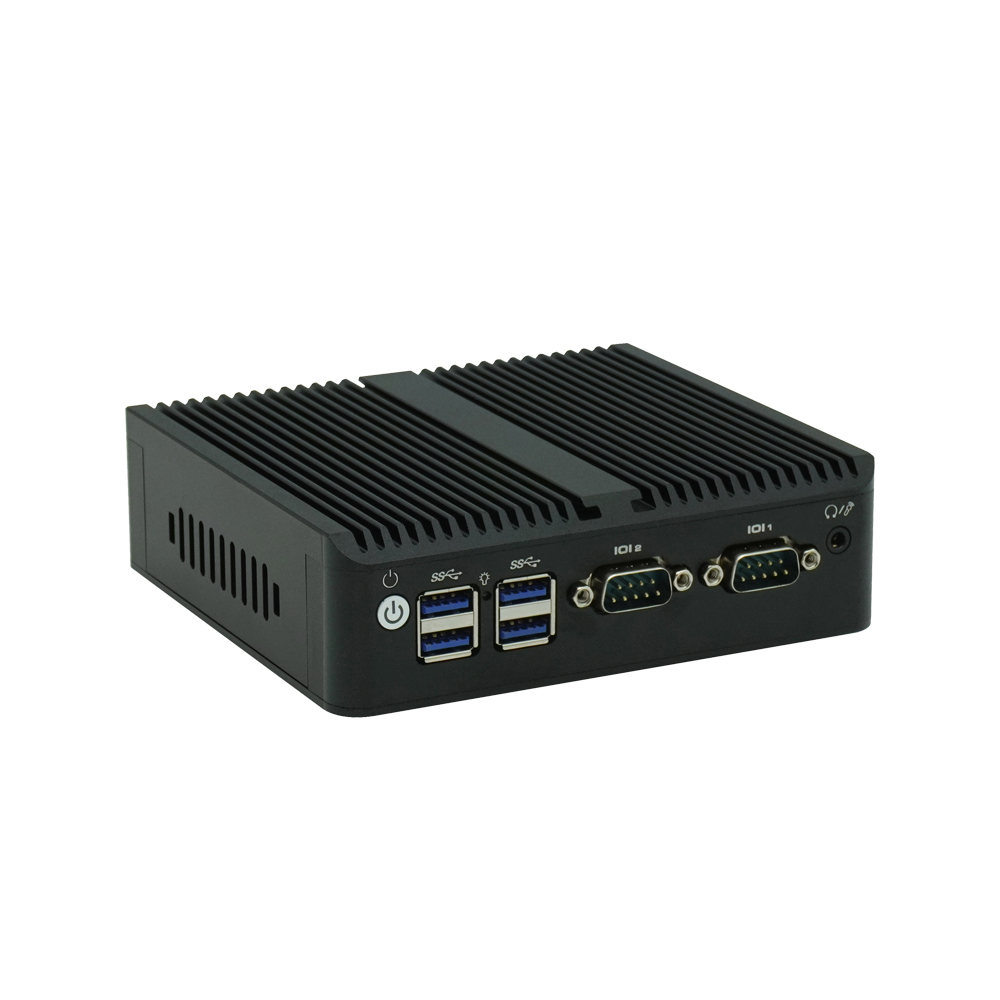

Model :M-M118
|
Processor performance |
|
|
CPU |
Integrated Intel® Celeron J4125 Quad core 2.0GHz Turbo boost 2.7GHz |
|
Chip |
Intel® SOC, TDP 10W |
|
Graphics |
Integrated Intel® HD graphics in CPU |
|
Cache |
Intel® Smart Cache 4MB |
|
Memory |
1*SO-DIMM DDR4 4GB Upgrade to 16GB |
|
SSD |
1*MINI SATA 32GB Upgrade to 1TB (Support 2.5” SSD) |
|
SATA |
1*2.5” SATA drive |
|
Expansion |
1*MPCIE for WiFi module or 4G LTE (SIM card interface) |
|
BIOS |
AMI UEFI BIOS |
|
OS Support |
Windows 10/11 Linux |
|
I/O Interface |
|
|
RJ45 |
2*RJ45 Ethernet ports 10/100/1000Mbps GbE interface |
|
RS232 |
2*Serial COM ports RS232 by default (Support 1*RS232+1*RS485 or 2*RS422/RS485) |
|
USB |
2*USB2.0 (Black color) 4*USB3.0 (Blue color) |
|
Audio |
1*Audio 3.5mm jack |
|
Display |
|
|
Output 1 Output 2 |
1*Standard VGA interface, support resolution 1920*1080p 1*HDMI 1.4 interface, support resolution 1920*1080p |
|
|
Support dual monitor display |
|
Booting |
|
|
Power on |
Support auto power on when electricity returns |
|
PXE |
Support PXE boot without SSD |
|
CMOS battery |
Support BIOS restore via CMOS battery |
|
VT-x |
Support Intel® Virtualization Technology for Directed I/O (VT-d) or (VT-x) |
|
Physical |
|
|
Material |
Full aluminium alloy chassis |
|
Heat sink |
Passive cooling with heat sink |
|
Dimension |
135*125*40mm |
|
Weight |
0.65Kg N.W |
|
VESA mount |
|
|
Installation method |
Attach to screen or Hang inside kiosk |
|
Dimension |
75*75mm |
|
Power management |
|
|
Power input |
DC 12V |
|
AC output |
100V~240V auto adaptive |
|
Environment |
|
|
Temperature |
Operation: -10℃~60℃, Storage: -20℃~70℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
