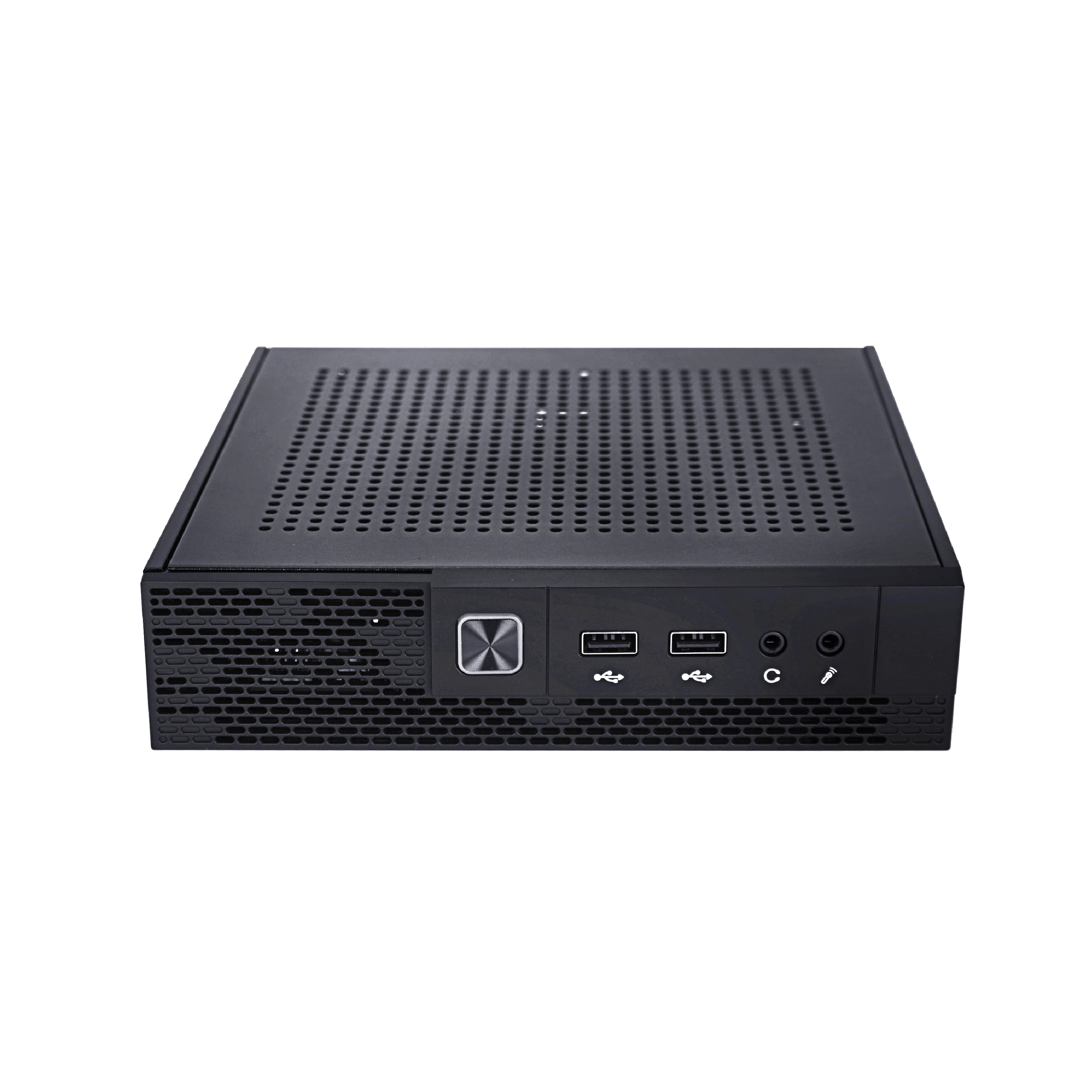

Model :M-M160
|
Processor performance |
|
|
Processor |
Intel® Core i3 10110U Dual core 2.1GHz Turbo Boost 4.1GHz |
|
Chip |
Intel® SOC, TDP 15W |
|
Graphics |
Integrated Intel® HD graphics in CPU |
|
Memory |
2*SODIMM DDR4-2666 4GB upgrade to 32GB |
|
SSD |
1*M.2 NVMe 128GB upgrade to 1TB |
|
SATA |
1*SATA HDD slot |
|
Expansion |
1*MPCIE support WiFi or 4G LTE (SIM card interface) |
|
BIOS |
AMI UEFI BIOS |
|
OS Support |
Windows 10/Windows 11 Linux |
|
I/O Interface |
|
|
RJ45 |
2*RJ45 RTL8111 Gigabit interface |
|
RS232 |
2*RS232 Serial COM ports (RS485 optional) |
|
USB |
4*USB2.0 (Black color), 4*USB3.0 (Blue color) |
|
Audio |
1*Audio (Red color), 1*Microphone (Green color) |
|
Display |
|
|
Output 1 Output 2 |
1*Standard VGA interface, support resolution 1920*1080p 1*HDMI 1.4 interface, support resolution 1920*1080p |
|
Multiple Display |
Support dual monitor display |
|
Processor performance |
|
|
Processor |
Intel® Core i7 10610U Quad core 1.8GHz Turbo Boost 4.9GHz |
|
Chip |
Intel® SOC, TDP 15W |
|
Graphics |
Integrated Intel® HD graphics in CPU |
|
Memory |
2*SODIMM DDR4-2666 8GB upgrade to 32GB |
|
SSD |
1*M.2 NVMe 128GB upgrade to 1TB |
|
SATA |
1*SATA3.0 slot 500GB upgrade to 1TB |
|
Expansion |
1*MPCIE support WiFi 1*MPCIE support 4G LTE (SIM card interface) |
|
BIOS |
AMI UEFI BIOS |
|
OS Support |
Windows 10/Windows 11 Linux |
|
I/O Interface |
|
|
RJ45 |
2*RJ45 RTL8111 ports 10/100/1000Mbps GbE interface |
|
RS232 |
2*RS232 Serial COM ports |
|
USB |
4*USB2.0 (Black color) 4*USB3.1 (Blue color) |
|
Audio |
1*Audio (Red color) 1*Microphone (Green color) |
|
Display |
|
|
Output 1 Output 2 |
1*Standard VGA interface, support resolution 1920*1080p 1*HDMI 1.4 interface, support resolution 1920*1080p |
|
Multiple Display |
Support dual monitor display |
|
Functional |
|
|
Power on |
Support auto power on when electricity returns |
|
PXE |
Support PXE boot without SSD |
|
CMOS battery |
Support BIOS restore via CMOS battery |
|
Physical |
|
|
Material |
Full aluminium alloy case |
|
Heat sink |
Passive cooling without fan |
|
Dimension |
195*127*57mm |
|
Weight |
1.1Kg net weight |
|
Desktop mount |
|
|
Installation method |
Attach on the computer desk or mount at the wall Install at the rack cabinet |
|
Power management |
|
|
Switch |
Power button |
|
Power input |
DC 12V~19V |
|
AC output |
100V~240V auto adaptive |
|
Environment |
|
|
Temperature |
Operation: 0℃~60℃, Storage: -10℃~70℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
|
Processor performance |
|
|
Processor |
Intel® Core i5 10210U Quad core 1.6GHz Turbo Boost 4.2GHz |
|
Chip |
Intel® SOC, TDP 15W |
|
Graphics |
Integrated Intel® HD graphics in CPU |
|
Memory |
2*SODIMM DDR4-2666 8GB upgrade to 32GB |
|
SSD |
1*M.2 NVMe 128GB upgrade to 1TB |
|
SATA |
1*SATA3.0 slot 500GB upgrade to 1TB |
|
Expansion |
1*MPCIE support WiFi 1*MPCIE support 4G LTE (SIM card interface) |
|
BIOS |
AMI UEFI BIOS |
|
OS Support |
Windows 10/11 Linux |
|
I/O Interface |
|
|
RJ45 |
2*RJ45 RTL8111 ports 10/100/1000Mbps GbE interface |
|
RS232 |
2*RS232 Serial COM ports |
|
USB |
4*USB2.0 (Black color) 4*USB3.1 (Blue color) |
|
Audio |
1*Audio (Red color) 1*Microphone (Green color) |
